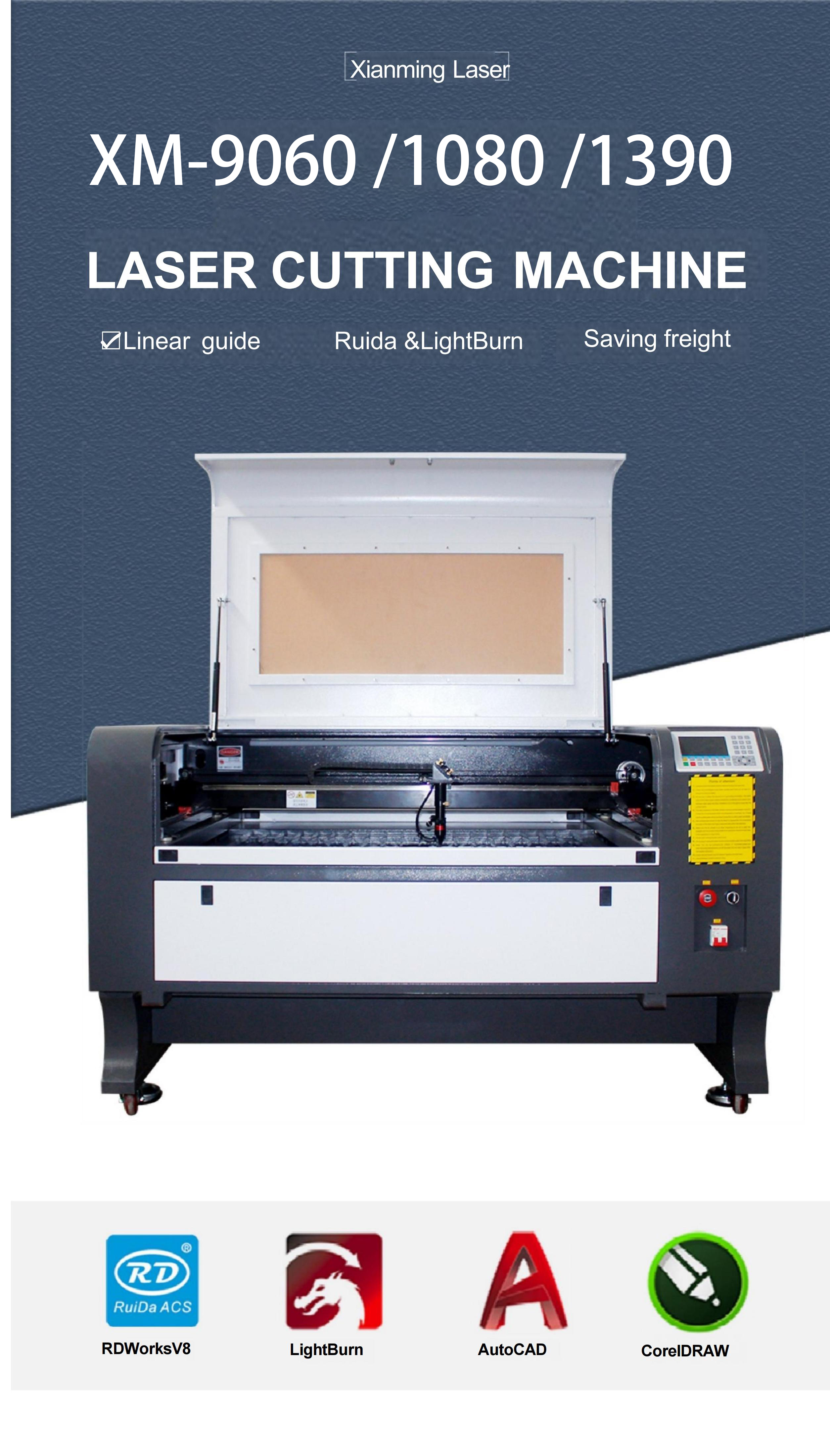

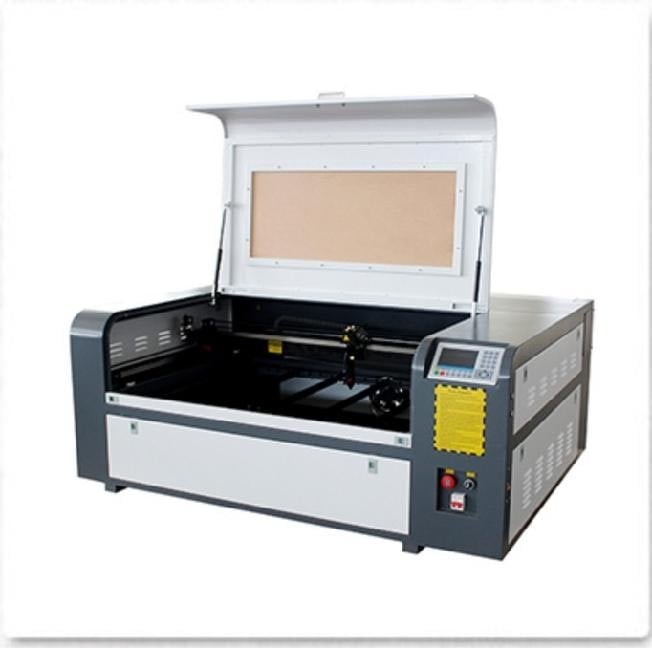

XM-9060 1080 1390 1610 60W 80W 100W 130W Laser Engraver CO2 Laser Cutting Machine for Acrylic Leather

  • Contact Us
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Introducing the XM-9060 1080 1390 1610 60W 80W 100W 130W Laser Engraver CO2 Laser Cutting Machine from Liaocheng Xianming, a high-quality industrial laser machine perfect for engraving and cutting materials like acrylic and leather

This versatile machine is equipped with a powerful CO2 laser that can precisely engrave intricate designs or cut through various materials with ease. The XM-9060 1080 1390 1610 offers a range of power options from 60W to 130W, allowing you to choose the perfect level of power for your specific project needs

With a large working area of 900mm x 600mm, this laser engraver and cutter can handle a wide range of materials and sizes. Whether you are working on small intricate designs or large-scale projects, the XM-9060 1080 1390 1610 has you covered

The machine is equipped with a high-quality laser head that ensures consistent and precise engraving and cutting results. It also features a user-friendly control panel with intuitive controls, making it easy to adjust settings and operate the machine efficiently

The XM-9060 1080 1390 1610 is designed for durability and reliability, with a sturdy frame and high-quality components that ensure long-lasting performance. Whether you are a beginner or a seasoned professional, this laser engraver and cutter is a valuable tool for any workshop or production facility

Whether you are creating custom signage, personalized gifts, or prototypes, the XM-9060 1080 1390 1610 60W 80W 100W 130W Laser Engraver CO2 Laser Cutting Machine from Liaocheng Xianming is the perfect solution for your engraving and cutting needs. Invest in this high-quality machine today and take your projects to the next level


PRODUCT DETAILS
PRODUCT     DETAILS
Model
XM-9060/1080/1390/1610

Worktable
Honeycomb /Aluminum knife

Eneraving area
900*600mm/1000*800mm/1300*900mm/1600*1000

Laser Power
60W/80W/100W/130W/150W

Engraving Speed
500mm/s Max

Engraving Depth
5mm

Cutting Speed
60mm/s

Cutting Depth Acrylic
0-15mm acrylic

Up and down work table
Ec Up and down 300mm adjustable

Minimum Shaping Character
1X1mm

Resolution Ratio
0.0254mm 1000dpi

Power Supply
220Vor110V +/-10%50Hz

Resetting Positioning
Accuracy less than or equal to 0.01mm

Water protecting sensor and alam
Yes

0perating Temperature
0-45℃

Operating Humidity
35-70℃

Graphic Format Supported
PLT/DXF/BMP/JPG/GIF/PGN/TIF

Graphic Format Supported
windows xp, win7, win10

Software
RDworksV8

Water Cooling Yes/No
Yes

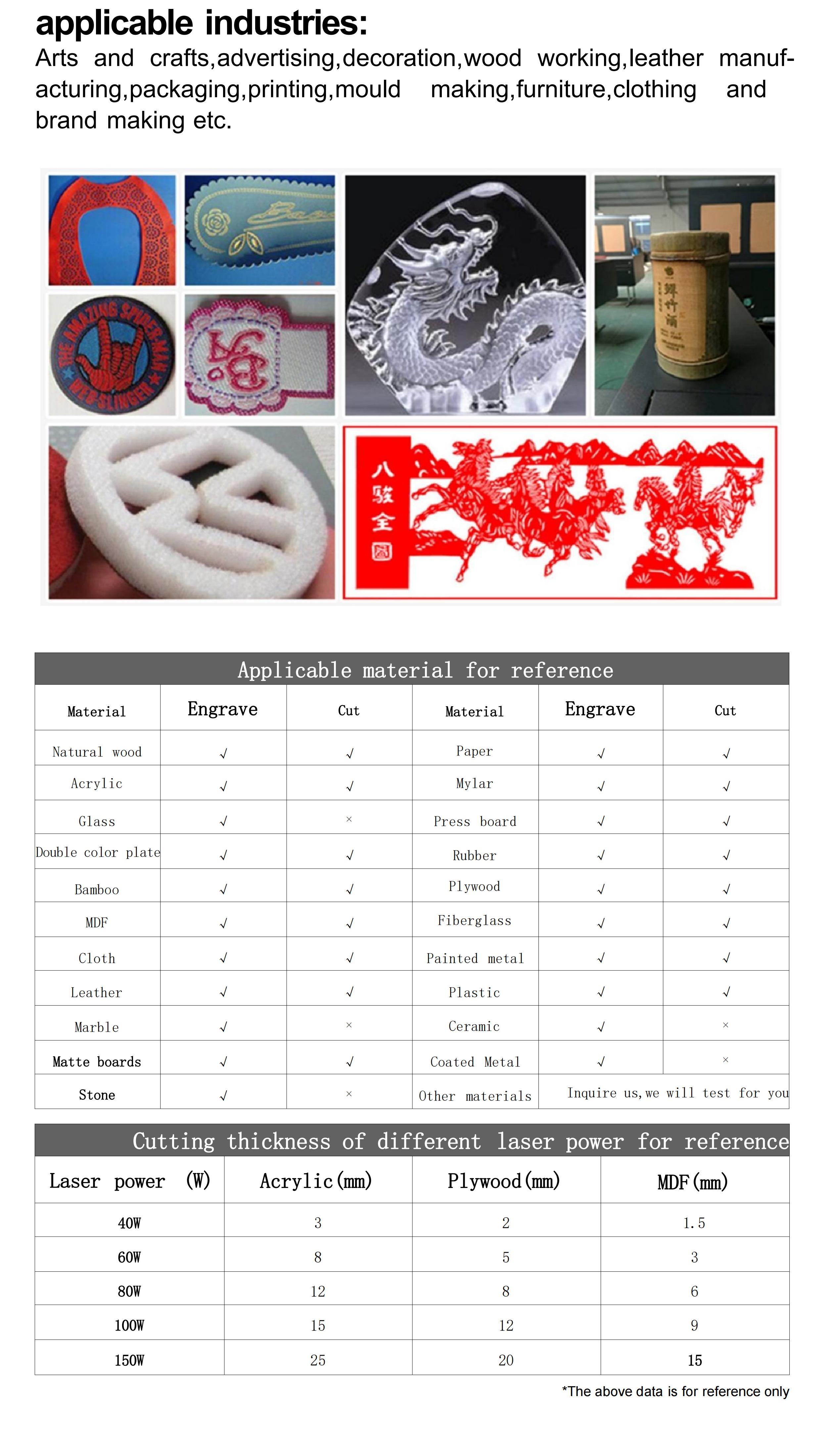

Xianming laser CO2 Laser Engraving Cutting Machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.1080 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing paper products,handicrafts. Household appliances, laser processing and other industries

CO2 LASER POWER:

This laser engraving and cutting machine comes with a CO2 laser tube to cut through various materials and engrave your designs faster, deeper, and clearer

RUIDA LCD DIGITAL CONTROLLER:

The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8

USB & ETHERNET PORTS:

2 USB ports allow flash drive connectivity and a USB-to-USB PC connection, Plus the ethernet connection is compatible with PCs

VIEWING WINDOW:

A transparent acrylic glass viewing window allows observation throughout the laser engraving process

ADJUSTABLE LASER NOZZLE:

The laser nozzle can extend downwards or be fully retracted allowing more control over different focal distance set up

WATER FLOW SENSOR:

A pressure flow sensor monitors water flow throughout the laser engraving process and prevents the laser from firing if water stops circulating through the laser tube

AUTOMATIC SHUTDOWN:

The auto-shutdown safety feature stops the machine when opening the transparent window cover. Once closed, press the“Enter”button to continue operation

LASER TUBE
Closed Co2 laser tube, long life, stable power. lnstallation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine

BRAND STEPPER MOTOR

High operating accuracy, high temperature resistance can bear the high temperature generated by high-speed operation, and low noise

MOTOR-DRIVER

1) self adaptive circuit 2) necessary accessories of offline working

LEADING CHAIN

The current lead and breather pipe are included in it. Thicker, more stable Keep the laser head from shaking

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed

FAMOUS BRAND BELT

The brand belt, wear resistance, good stability, compact structure and low noise

. Adopt advanced laser engraving and cutting control system : Ruida RDC6442 control system, the control pannel support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian

2. Standard RDWorksV8  software : It support 15 different languages, include:Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean, Vietnamese, Indonesian, ltalian, Turkrish, Arabic, lt can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAJIMA, etc. You can use these software to make designs, then import to Rdworks to cut or engrave

3. RDworks software support files in different format:Al, DXF, PLT, DST, BMPDSBEPSDATNCRDBGIFJPGJPEGJPEJFIFPNGMNGICOCURTIFTIFETGAPCXWBMP, WMF, EMFJBG, J2CJPC, PGXRAS, PNM, PGM, PPM, SKARAW

4. Storage:The mainboard has EMS Memory which enables the user to store more than 100 files

5. Laser output control: Can regulate the laser power from 1-100%accordingto different material

6. Interface:USB2.0 interface support connect to computer by USB cable, it also support offline work

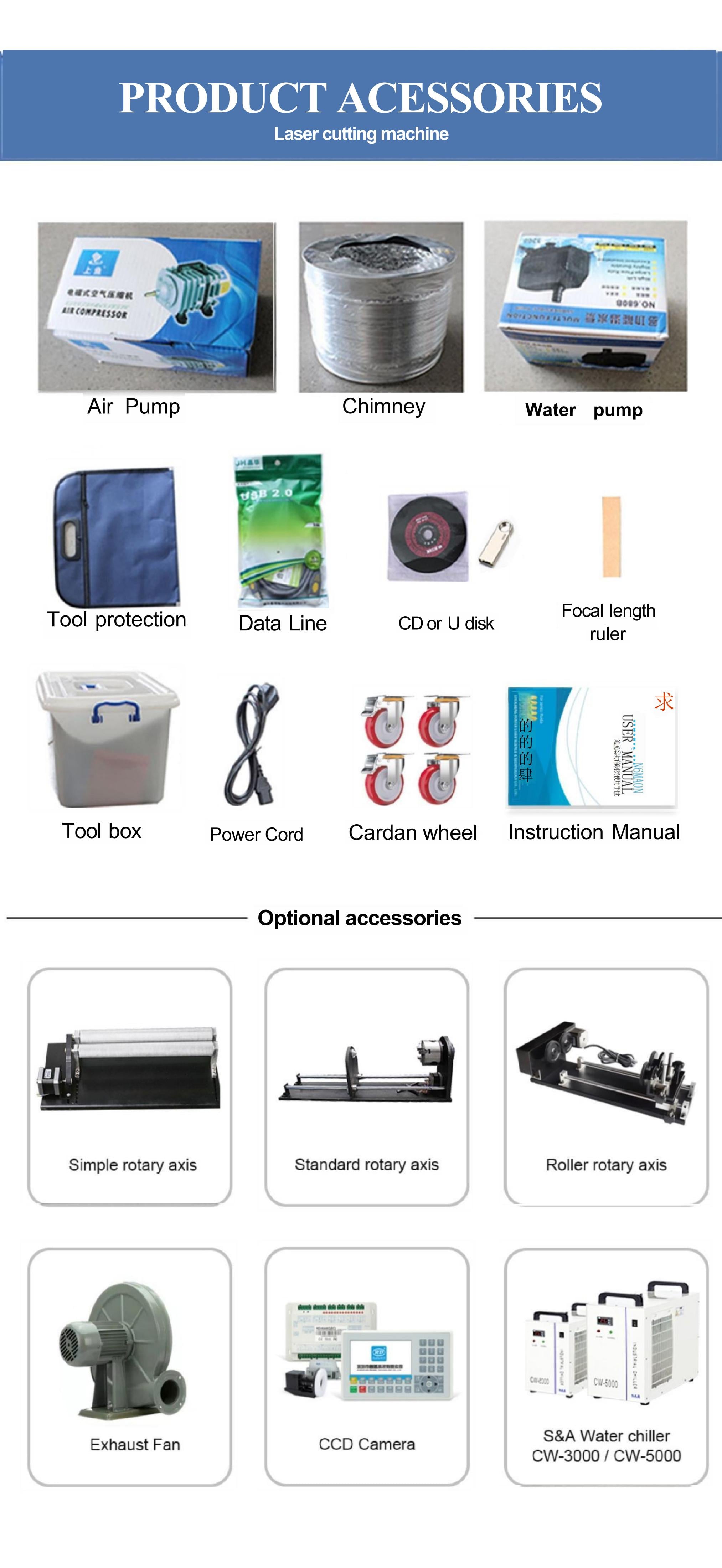

Product Acessories
