Model: XM-1325 / 1530
Working area: 1300*2500mm/1500*300mm
120w/180w
Water Cooling
High precision and stability
High durability
Large format marking capability
Minimum Order Quantity: |
1 |
Packaging Details: |
1.Whole film packaging Sheet fiber laser machine; 2.Anti-collision package edge; 3. Fumigation-free plywood wooden box and pallets with iron binding belt. |
Delivery Time: |
7-40 Days |
Payment Terms: |
TT (Telegraphic Transfer), Western Union, Paypa, Alibaba Trade Assurancel. |
Supply Ability: |
300 Set/Sets per Month |
Minimum Order Quantity: |
1 |

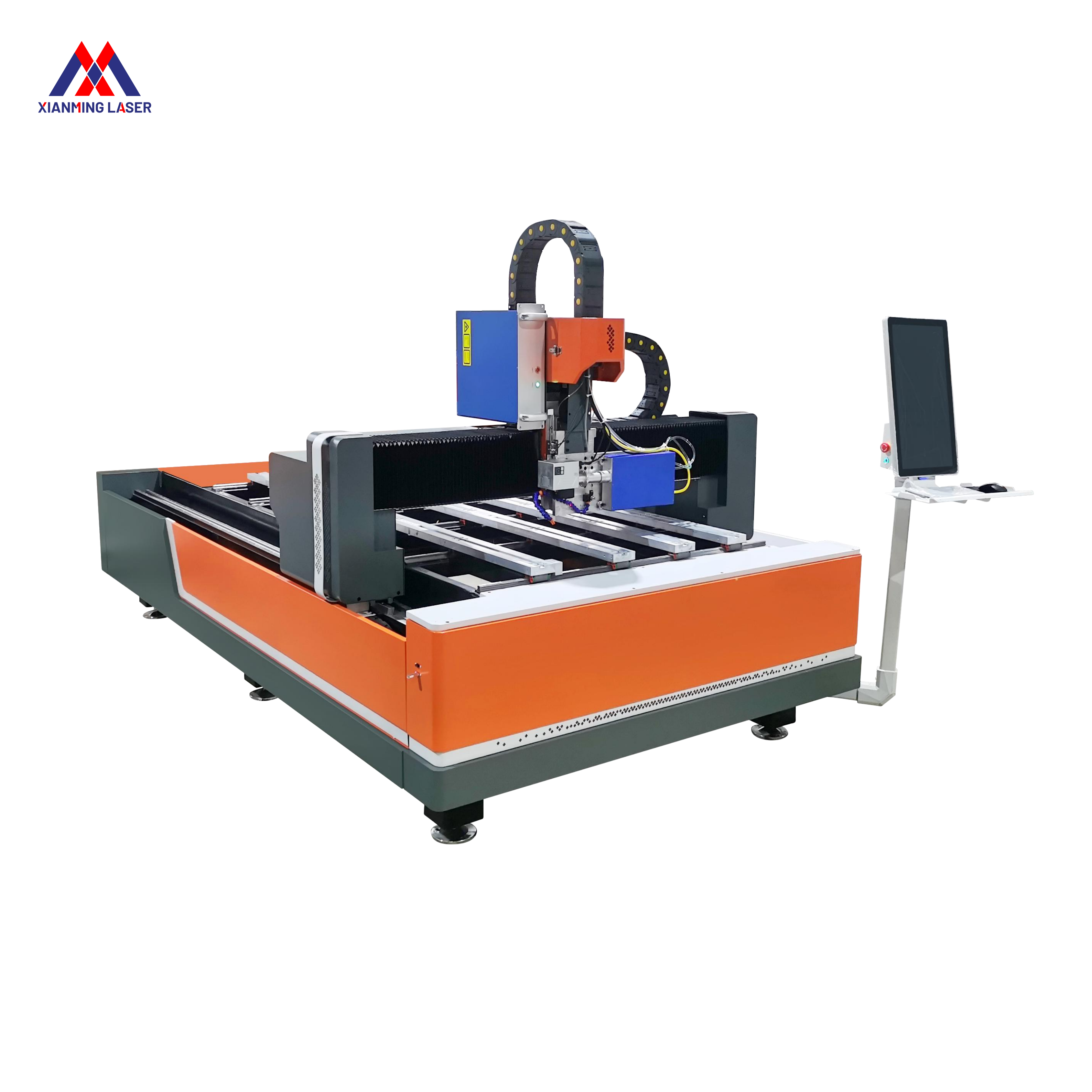

1325/1530 Fiber Laser Glass Sandblast Engraving Machine is developed according to the market demand, achieving one-time paint removing, sandblasting and drilling by laser. Replaced the traditional complex processes of filming, engraving, film removing, sandblasting, and marking completely by one machine. After the market application, which can help manufacturers achieve better results in industry competition (higher-end products, labor-saving, higher efficiency, and no consumables).
01. High precision and stability: This large-scale laser marking machine employs advanced laser technology and is capable of achieving high-precision marking results. The micrometer-level accuracy of its light spot diameter compensates for the characteristics of high energy density and uniform distribution.
02. High durability: The surface of intelligent mirrors treated by laser sand - blasting is more wear - resistant, corrosion - resistant, and has excellent rust - proof ability. It is suitable for humid environments and can extend the service life.
03. Large format marking capability: It can meet the requirements for large-scale laser marking. At the same time, it also offers customized services to meet special needs.
04. Aesthetic and unique: It can create unique visual effects such as matte or semi - matte finishes, adding decorative and design elements, and meeting diverse aesthetic needs.
05. Environmental protection: During the marking process, no chemical solvents or inks are required, which reduces environmental pollution and energy consumption, aligning with the green development trend of modern manufacturing.
06. Applicable Industries: Smart Mirrors, Decorative Glass, Lighting, Architecture
07.Applied to: Film removal, sandblasting, drilling and marking of clear glass and silver-plated mirrors

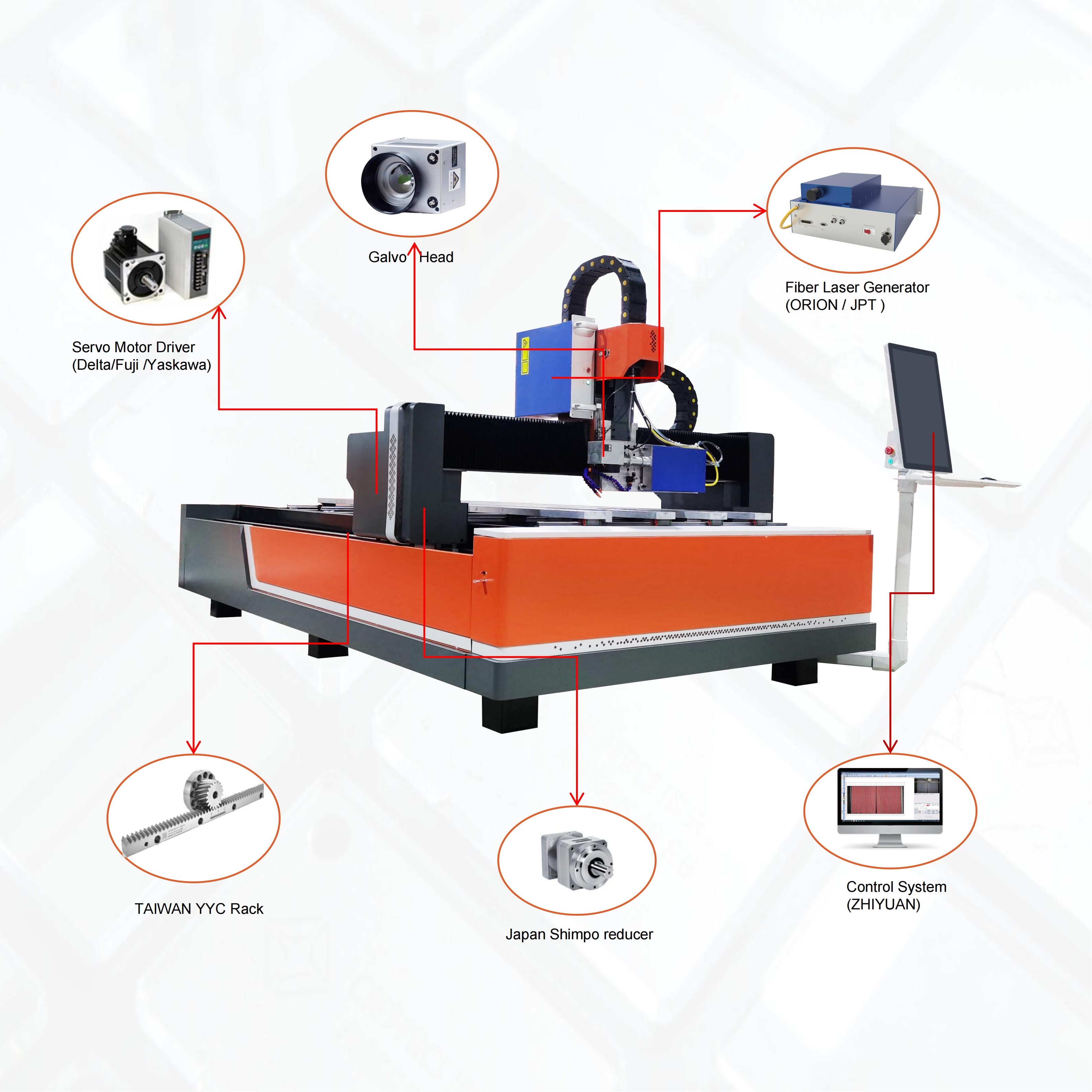

Using well-known high-quality galvanometers, the marking speed is fast, the effect is fineand . The red light system is embedded in the vibrating lens, stable, and accurately positioned
The field mirror scanning system adopts new technologies, new materials and new processes, with high light transmittance.
The control system is independently developed and is different from the traditional marking machine system. It can freely design various graphics to be processed and supports multiple formats.
Fiber laser source guarantees high-quality beam quality, and the marking effect is very delicate. With the stable slide rail design, it is especially suitable for large-format seamless image marking.
The uselife can reach 100,000 hours, and the machine can be used for 8-10 years and no consumables.

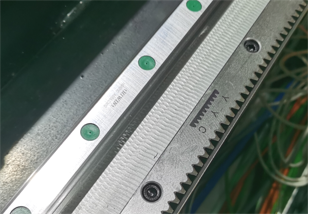

High precision linear guide rail, with good rigidity and high accuracy, with a running accuracy of 0.02 mm, dustproof and rust proof, and simple maintenance

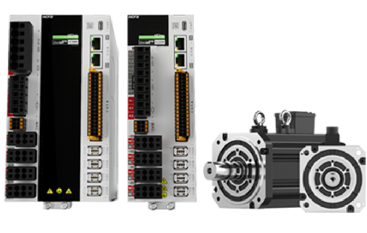

Servo motors stabilise and drive the beam to control the movement of the XYZ axis according to the programmed
instructions to complete the cutting operations with complex precision and the user can adjust the parameters according to their needs.
Delta/Fuji /Yaskawa
High precision and high rigidity Using a helical gear structure, it effectively reduces operating noise.
Use high-grade lubricating grease, with a maintenance period of up to 20,000 hours.
No deformation,light weight,high strength Light cross beams allow equipment to operate at a faster rate boosting processing efficiency and quality.

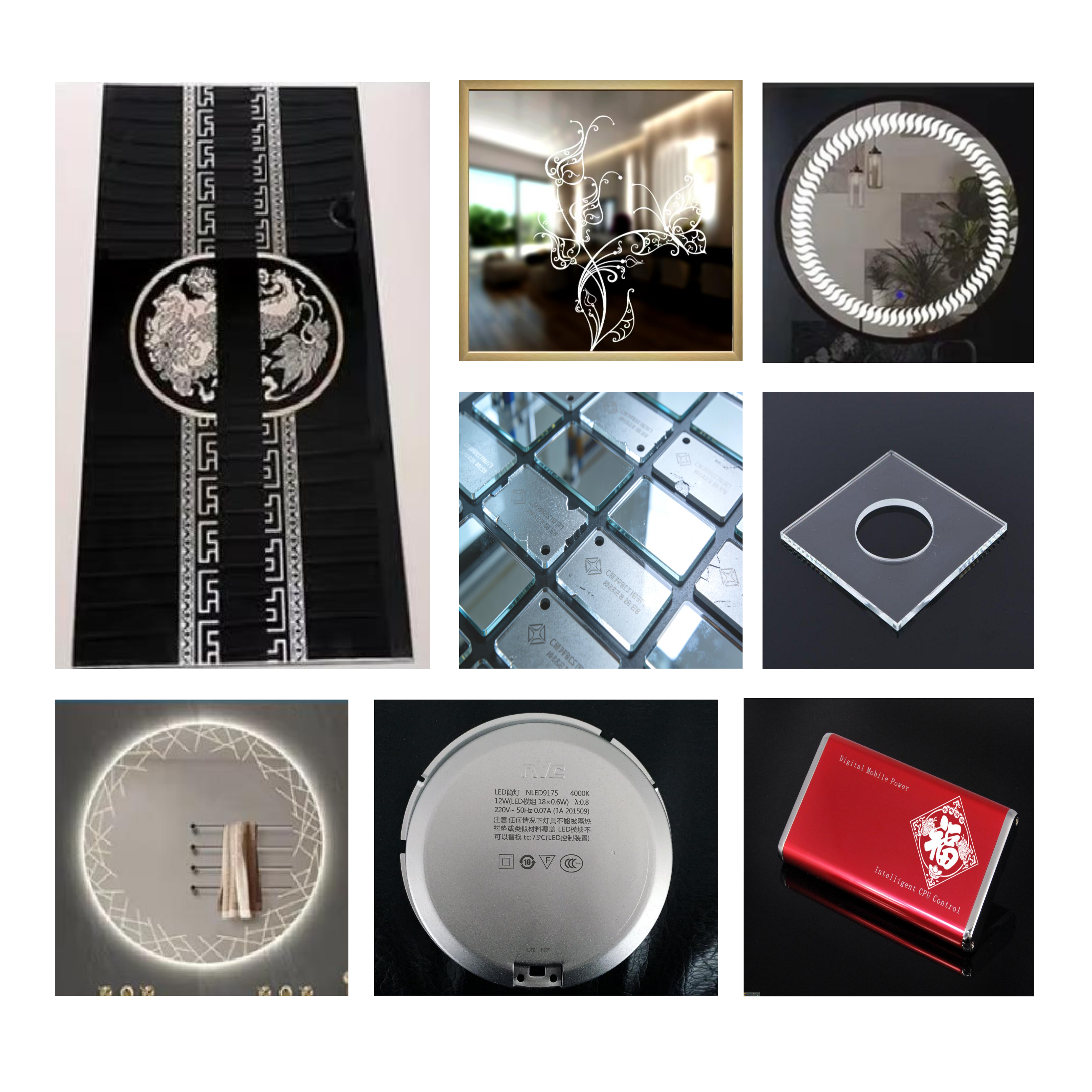

The machine is not only applicable to the paint and mirror removal process of building glass， automobile glass， furniture glass， process glass， decorative glass， cabinet glass and smart mirror industry，etc
Applicable materials: The machine is not only applicable to the paint and mirror removal process of building glass， automobile glass， furniture glass， process glass， decorative glass， cabinet glass and smart mirror industry，but also applicable to the surface marking of most plastics and various alloy materials such as stainless steel，aluminum oxide，copper, etc
Model |
XM-1325 / 1530 |
Marking Area |
1300*2500mm/1500*300mm |
Laser Power |
120w/180w |
Control System |
ZHYUAN |
Laser wavelength |
1064(nm) |
Working speed |
1-6000mm/s |
Min Width |
0.03mm |
Min character |
0.3mm |
Repeat accuracy |
±0.01mm |
Cooling Model |
Water Cooling |
Maximum cutting diameter |
50*50mm |
1. Warranty for 1 years.
2, Maintenance for whole life.
3, We will provide the consumable parts at an agency price.
4, 24 hours online service,free technical support.
5, Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6, We have manual instruction and CD/U disk for software installation,operation and machine's using and maintenance.
Q1.How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details: 1.What is your material? 2.The size of material? 3.The thickness of material?
Q2.When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3. If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4. What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
