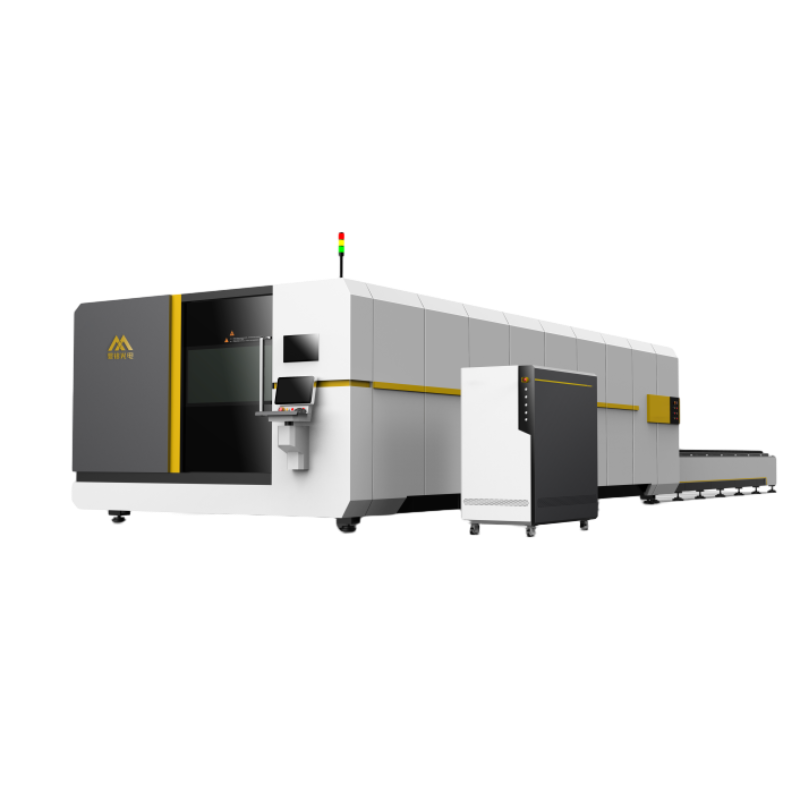

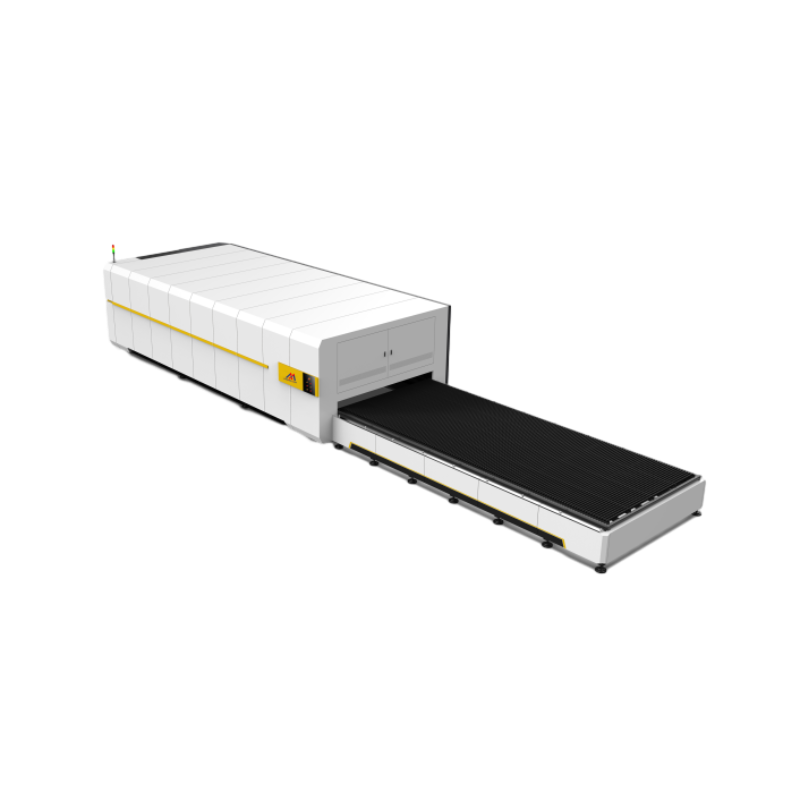

All Cover Fiber Laser Cutting Machine with Exchange Platform

Model: XM-6025PH
Working area: 6000x2500mm
Fully enclosed cover design with dual table
Color: Can customized
Prevent flying sparks from posing a safety hazard


  • Contact Us
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Commercial terms of products:

Minimum Order Quantity:

1

Packaging Details:

1.Whole film packaging Sheet fiber laser machine;

2.Anti-collision package edge;

3. Fumigation-free plywood wooden box and pallets with iron binding belt.

Delivery Time:

7-40 Days

Payment Terms:

TT (Telegraphic Transfer), Western Union, Paypa, Alibaba Trade Assurancel.

Supply Ability:

300 Set/Sets per Month



Product introduction:

    Aviation aluminum beam

    The Latest Development Aviation Aluminum Beam

    The gantry is made of high-quality aviation aluminum, which has the advantages of hard texture, high rigidity, and better stability. Improved cutting accuracy.

    Fiber laser cutting machine Raytools cutting hand

    Autofocus Laser Head Active Collision Prevention

    It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive thesurroundings and lift up to avoid obstacles intelligentlyFlying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

    Double-Exchange-Platforms-1500W-2000W-3000W-6000W-8kw-10kw-12kw-20kw-Fiber-Laser-Cutting-Machin

    TheSegmented Rectangular Tube Welded Bed

    Annealed And Heat Treated
    Steel plate welding heavy duty table, 20 years of non-deformation, suitable for ultra-high power 10 million watt laser. The increase in weight is very beneficial to the cutting speed of the laser cutting machine.




Description:

This fiber laser cutting machine adopts a fully enclosed laser protective cover, which protects the operator from sparks and slag splashes during the production process. The scientific flue gas recovery and purification treatment system can effectively maintain the cleanliness of the working area. Exchange trays can quickly and conveniently load and unload metal plates, and have high processing efficiency. This modern machine is recognized by our metal manufacturer.



Applications:

Applications: Advertising decoration, air-conditioning manufacturing, food machinery, textile machinery, sheet metal, electronics, environmental protection machinery and other industries.

Applicable materials: Black metals, iron and its alloys, carbon steel, stainless steel, aluminum plates, brass copper and other thin metal materials, most of the metal plate can be cut.

Typical cases: Car door redundant corner, burr processing, seiko and metal word cutting, crafts.



Specifications:

Model

Fiber Laser Cutting Machine

Maximum Working Size

2500*10000mm

Laser Power

1/1.5/2/3/4/6/8/12/15/20/25/30KW

Laser Wavelength

1080nm

Laser Beam quality

<0.373mrad

Working Life of Fiber Source

More than 10,0000 hours

Position Type

Red Dot Pointer

Cutting Thickness

0.5-25mm Within The range

Max. Idle Running Speed

80-110M/min

Max acceleration

1G

Reorientation Accuracy

Within ±0.01mm

Lubrication System

Electrical Motored

Cooling mode

Water cooling and protection system

Machine power

9.3KW / 13KW /18.2KW /22.9KW

Auxiliary Gas for Cutting

Oxygen, Nitrogen, Compressed Air

Compatible Software

AutoCAD, CorelDraw, etc.

Handle Control

Wireless Control Handle

Graphic Format

DXF/PLT/AI/LXD/GBX/NC code

Power Supply Voltage

220V 1Ph or 380V 3Ph, 50/60Hz


Competitive Advantage:


XINMING laser large format equipment can be customized according to customer requirements, including (12m * 2.5m) and (10m * 2.5m) overweight bed processes, to meet the diverse needs of the global market for large-scale sheet metal cutting. It is high-end, high-precision, high-speed, high format, and cost-effective.

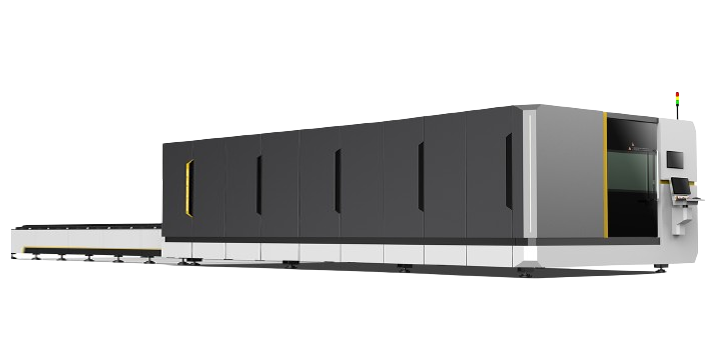

XINMING laser large format equipment




Samples Show - High-end intelligent CNC Fiber laser cutting machine


  • 1
  • 2
  • 4
  • 5
  • 15mm aluminum
  • 19mm carbon steel
  • cutting 12&14mm carbon steel
  • cutting 12mm carbon steel 3kw
